Installing the heat shield on the starter motor

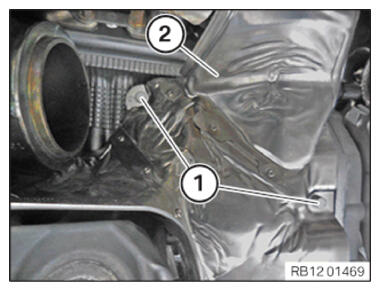

- Feed in the heat shield (2) at the starter motor and mount.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

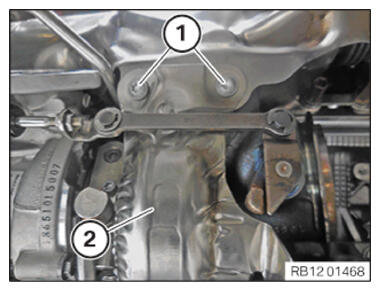

Heat shield to starter motor/crankcase M6 Tightening torque 10 Nm - Mount the heat shield (2) on the exhaust turbocharger.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

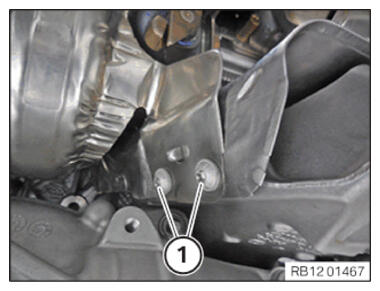

Heat shield to exhaust turbocharger M6 Tightening torque 8 Nm - Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heat shield to engine mounting bracket M6 Tightening torque 10 Nm
