Installing the fog light bracket on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing fog light support

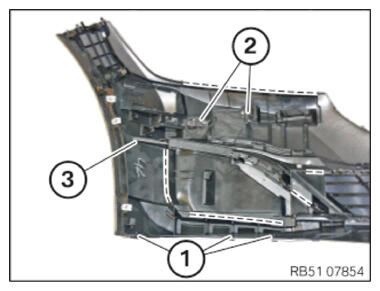

Fit fog light support (3) engage it into the latch mechanisms along the dotted lines.
Connect the connector (2) and attach it to the wiring harness.
Mount the expanding rivet (1) .
