Install the ornamental grille on the bumper cover on the side

NOTE: Description is for left component only. Procedure on the right side is identical.

• Check the detents.

  Detents must not be damaged or missing.

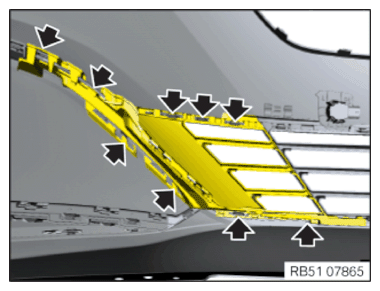

• Install ornamental grille on the side of the bumper cover (1) and engage in detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
