Install the module bracket on the front of the door (part installation)

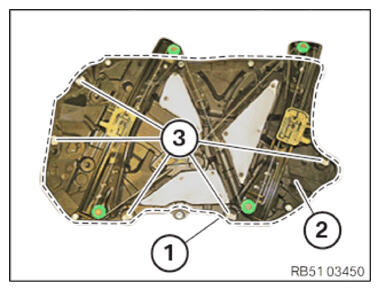

• Check seal (1) of the module bracket (2) for damage.

  If the seal (1) is damaged, the module carrier (2) must be replaced.

• Open all the snap fasteners (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

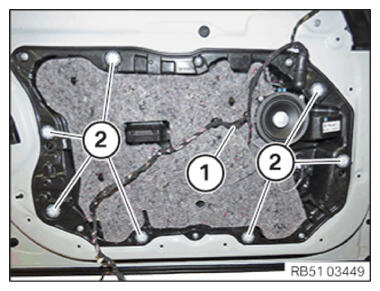

• Feed in module bracket completely with the power window and close the snap fasteners (2).
• Attach wiring harness (1) and connect the plug connections.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Module bracket to door
screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
