Removing module bracket on the rear door

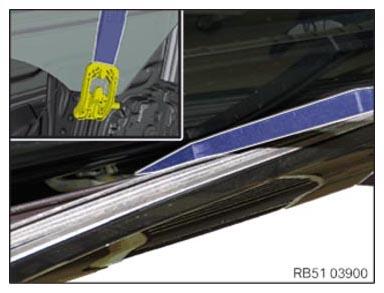

• Secure the side window glass to the door frame when it is closed using adhesive tape.
• Spread apart the holder on the outside of the side 0 496 569 (00 9 325) until the side window glass can be detached.
• Shift power windows down by approximately 10 cm.

  Courtesy of BMW OF NORTH AMERICA, INC.

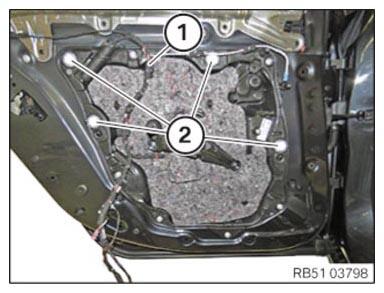

• Detach wiring harness (1) and disconnect plug connections.
• Release snap fastener (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

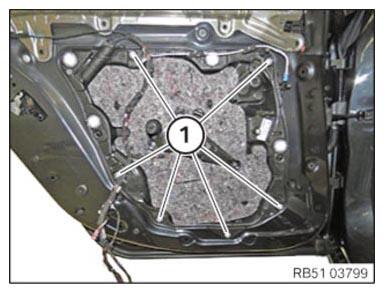

• Loosen screws (1).
• Thread off the module bracket completely with the power windows.

Courtesy of BMW OF NORTH AMERICA, INC.
