Remove both lower B-pillar trim panels
NOTE:
Description is for left component only. Procedure on the right side is identical.

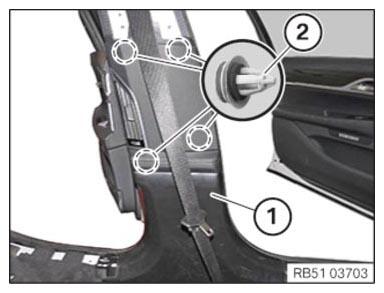

Remove the lower B-pillar trim panel
- Detach the B-pillar trim panel (1)
from the clips (2)
and remove toward the inside.
- If necessary, unlock the associated plug connection and disconnect.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
