Installing both rear seats
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the seat
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp edged components.
Scratches, surface damage.
Careless handling of tools and sharp edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Insert the seat into the vehicle.
- Slightly fold the rear seat backrest forwards.

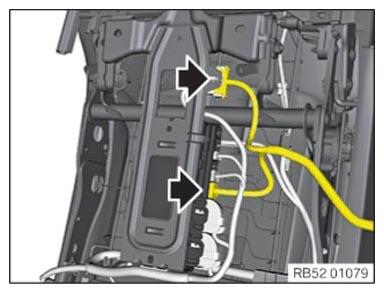

- Connect connector.
NOTE:
RISK OF DAMAGE
Damage to the safety belt.
If the seat surface is disassembled, the safety belt can be damaged by the seat mechanism.
Damage to the safety belt.
If the seat surface is disassembled, the safety belt can be damaged by the seat mechanism.
- Do not operate the seat adjustment mechanism with the seat surface disassembled (unless otherwise signaled).

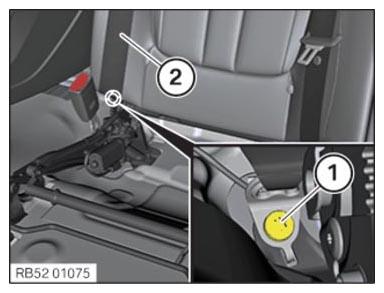

- Insert the safety belt (2) and correctly position it on the seat mechanism.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Lower strap to body | ||
| M12 screw | tightening torque | 42 Nm |

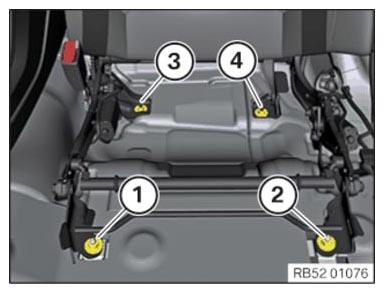

- Tighten nuts in the sequence (1), (2), (3) and (4).
TIGHTENING TORQUES SPECIFICATION
| Rear seat to body | ||
| Nut M8 | Tightening torque | 18.5 Nm |

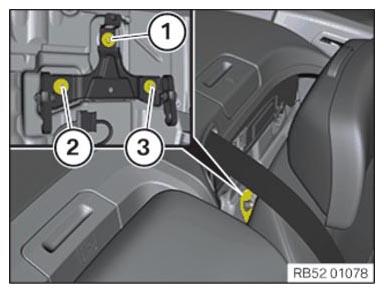

- Tighten nuts in the sequence (1), (2), and (3).
TIGHTENING TORQUES SPECIFICATION
| Rear seat to body | ||
| Nut M8 | Tightening torque | 18.5 Nm |
- Attach the cover (1) into the seat mechanism from the top.

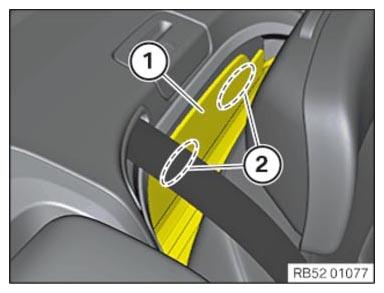

- Secure the cover with Velcro fastener (1) in this area (2).
