Installing both bottom B-pillar trims
NOTE:
Description is for left component only. Procedure on the right side is identical.

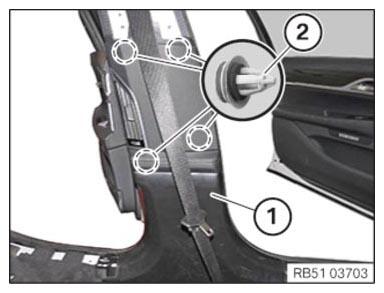

Install the lower B-pillar trim panel
- Insert the B-pillar trim panel (1) and connect the associated connector, if applicable.
- With IHKA control panel (SA4NB) with 4-zone control:
Make sure the B-pillar trim panel (1) is correctly positioned at the air duct.
- Engage the B-pillar trim panel (1) in the clips (2) .
- Check the B-pillar trim panel (1) for correct fit in relation to the front and rear edge protection.
