Removing the front brake caliper (braking system remains closed)

NOTE: Description is for left component only. Procedure on the right side is identical.

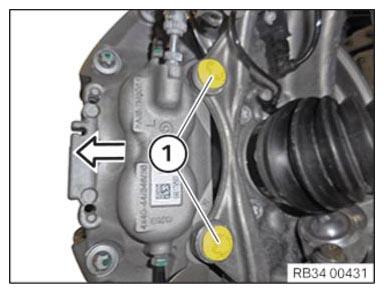

• Loosen screws (1)  .
• Detach the brake caliper in the direction of the arrow.
• Tie up the brake caliper.

  Do not hang the brake caliper from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.
