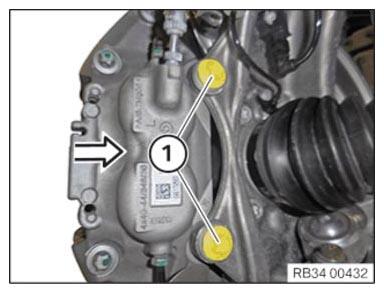

Installing the front brake caliper (braking system remains closed)

• Install the brake caliper in the arrow direction.
• Replace screws (1)  .

  Parts:  Screws

• Tighten the screws (1)  .

TIGHTENING TORQUES SPECIFICATION

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
