Installing both front door sill cover strips
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the front door sill cover strip

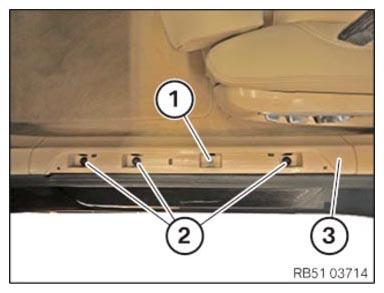

- Install the door sill cover strip (3) .
- Ensure correct fit of the door sill cover strip (3) on all adjacent components.
- Mount the expanding rivets (2) .
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION

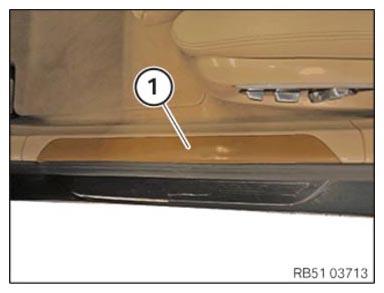

Door sill cover strip Tightening torque 2 Nm - Install sill trim (1) .
- Ensure correct fit of the sill trim (1) on the edge protection and on the door sill cover strip.
