Detaching the wiring harness of the EPS from the front axle support

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Version A:

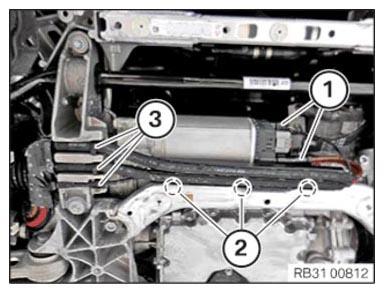

Unlock and disconnect plug connections (1) .

Release the wiring harness in the marked areas (2) from the front subframe.

Release the wiring harness in the area (3) from the retainer.

Courtesy of BMW OF NORTH AMERICA, INC.

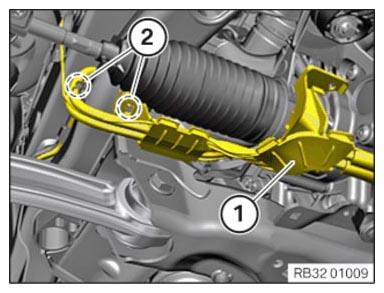

Release the wiring harness (1) in the marked areas (2) .
Set wiring harness (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:

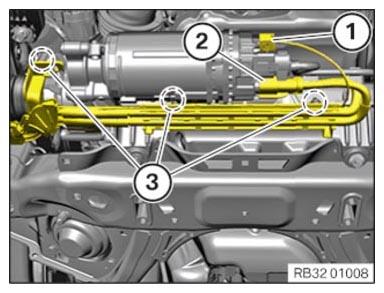

Unlock and disconnect the plug connections (1) and (2) .

Release the wiring harness (3) from the steering gear in the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.

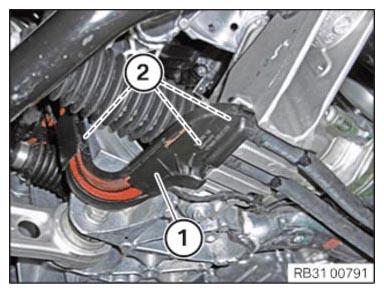

Release the wiring harness (1) in the marked areas (2) from the front subframe.
Place the wiring harness (1) on the side.

Courtesy of BMW OF NORTH AMERICA, INC.
