Connect transmission oil lines
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.

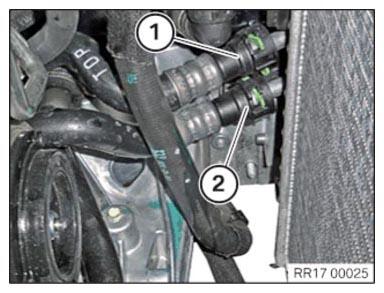

- Connect the transmission oil return line (1) to the transmission oil cooler and engage it audibly.
- Connect the transmission oil feed line (2) to the transmission oil cooler and engage it audibly.
