Body Equipment -- Repair (1 Of 3) (G12)
>>
51 16 Mirrors, Decorative Strips, Ashtrays, Consoles
>>
51 16 164 Replacing rear center console trim
>>
Remove the rear bottom center console trim
Remove the rear bottom center console trim

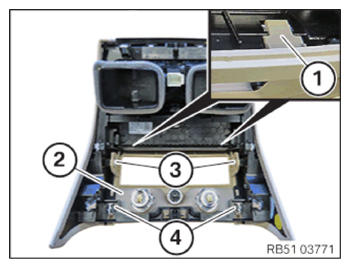

Unlock the detents (1).
Unlock the detents (3).
Press the center console trim at the bottom rear (2) towards the rear and unclip the clips (4).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
