Replacing the center console trim

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Attach protective film (1) to gear selector switch (GWS).

Courtesy of BMW OF NORTH AMERICA, INC.

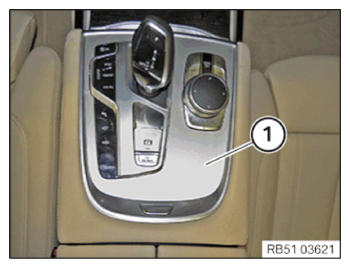

Unclip the center console trim (1) upwards with the special tool 0 496 569 (00 9 325) .
Turn the center console trim (1) towards the side and feed it out over the gear selector switch (GWS).
Position center console trim (1) at the side.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the parking brake button

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front controller

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the control unit in the center console

Loosen screws (1).
Loosen the detents (2).
Guide the control unit in the center console (3) in the direction of the arrow out of the center console trim.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the operating facility in the center console

Feed the operating unit in the center console (3) into the center console trim in the arrow direction.
Check the detents (2).
Replace screws (1).
Parts: Screws
Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Operating facility in the center console on center console trim
Screw TS5x12 Replace screws.	Tightening torque	1.5 Nm

Installing the front controller

TIGHTENING TORQUE SPECIFICATIONS

Front controller to trim
Screw TS5x12	Tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the parking brake button

TIGHTENING TORQUE SPECIFICATIONS

Parking brake button on center console trim
Screw TS5x12	Tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the center console trim (1) towards the side and install it via the gear selector switch (GWS).
Clip on the center console trim (1).
