51 47 Floor-TRURK-Engine Compartment-Trim Panel
>>
51 47 101 Removing and installing/replacing luggage compartment floor covering (740e xDrive PHEV 2017-2019, 745e xDrive PHEV 2020-2022)
>>
Remove the rear luggage compartment floor covering
Remove the rear luggage compartment floor covering
Open the luggage compartment floor covering.

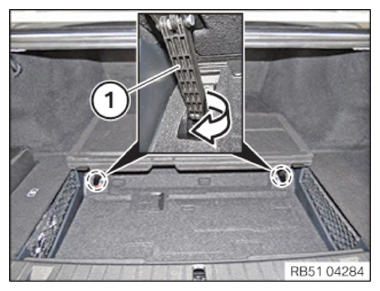

Press the lever (1) on the left and right inward in the direction of the arrow and detach it from the guide.
Courtesy of BMW OF NORTH AMERICA, INC.

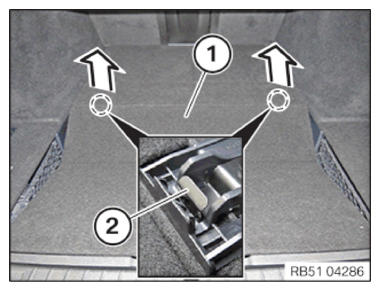

Unclip the luggage compartment floor covering (1) from the clamps (2) in the direction of the arrow toward the top.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
