Installing the headlining (with panorama glass roof)

Precondition

The front seats have been fully adjusted towards the rear bottom.

The front seat backrests have been fully adjusted towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the headlining through the left rear door.

  Slightly bend the headlining to insert the headlining in the area around the C-pillar.

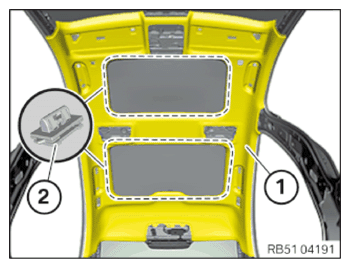

• Clip in the headlining (1)  using the clips (2)  .
• Feed the headlining (1)  into the edge protection.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the headlining (1)  to the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

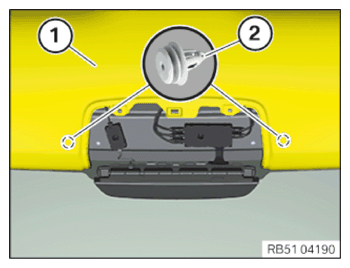

• Position the trim (1)  and clip in with the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

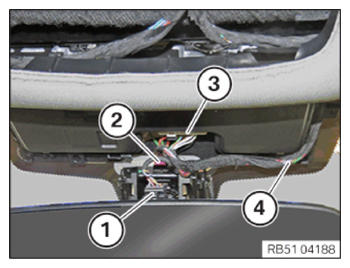

• Insert the wiring harness (4)  and secure to the associated cable clips.
• Connect connectors (1)  to (3)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

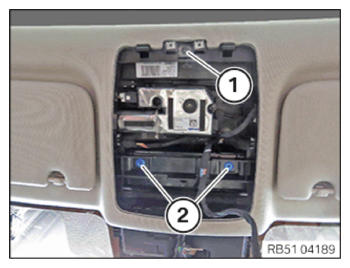

• Secure the headlining to the clips (2)  .
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
• Refer to INSTALLING BOTH VANITY MIRROR LIGHTS .
• Refer to INSTALLING THE RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING LEFT HANDS-FREE MICROPHONE .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to INSTALLING EDGE PROTECTION OF THE REAR DOOR, LEFT .
• Refer to INSTALLING THE BOTTOM LEFT B-PILLAR TRIM PANEL .
• Refer to PARTIALLY INSTALLING THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT LEFT DOOR SILL COVER STRIP .
• Refer to INSTALLING THE REAR LEFT DOOR SILL COVER STRIP .
• Refer to INSTALLING LEFT SEAT BELT FINISHER STRIP .
• Refer to INSTALLING BOTH C-PILLAR TRIM PANELS .
• Refer to INSTALLING BOTH REAR VANITY MIRRORS .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING BOTH INTERIOR LIGHTS .
