Body Equipment -- Repair (1 Of 3) (G12)
>>
51 15 Protective Strips
>>
51 15 360 Removing and installing/replacing protective strip on left or right rear door
>>
Installing bumper strip on the rear door
Installing bumper strip on the rear door
Check the clips (marks) for damage and replace if necessary.
The clips must not be damaged or missing.

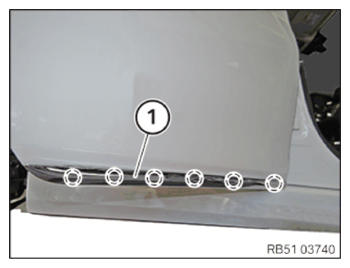

Attach bumper strip (1).
Clip bumper strip (1) into all clips (marks).
Courtesy of BMW OF NORTH AMERICA, INC.
