Removing rear bumper panel
NOTE:
TECHNICAL INFORMATION
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to ON VERSION WITH COMPACT SPARE WHEEL: REMOVING THE STORAGE TRAY .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to REMOVING BOTH TAIL LIGHTS FROM THE SIDE PANEL .
- Refer to REMOVING THE TRIM FROM THE REAR BUMPER PANEL .
- Refer to REMOVING BOTH EXHAUST TAILPIPE TRIMS .
- Only for G30/G38:

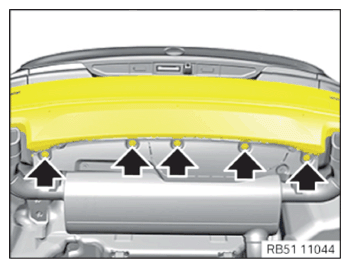

Remove screws (arrows).
- Loosen screws (1).
- Loosen screws (1).
- Release the bumper cover (2) from the detents (3) at the top.
- Release the bumper cover (2) from the remaining detents at the bottom and on the side at the top and pull towards the rear.
- Disconnect the plug connections and remove the bumper cover (2).
