Remove fog lamp holders
NOTE:
TECHNICAL INFORMATION
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING FRONT ORNAMENTAL GRILLE .
- Refer to PARTIALLY REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to REMOVING FRONT BUMPER COVER .
Removing the high-pressure nozzle of the headlight cleaning system

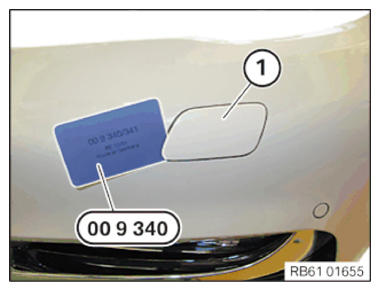

- Lever out the cover panel (1) with the special tool 0 493 687 (00 9 340) .
- Slowly pull out high-pressure nozzle of headlight cleaning system from cover (1).
- Unclip the cover (2) from the guide (1) at the side in the direction of the arrow and remove to the front.
- Allow the high-pressure nozzle (3) of headlamp washer system to slide back slowly.
- Unlock and disconnect high pressure line (1).
- Unlock the detents (2).
- Remove the high-pressure nozzle (3) towards rear.
- Release the fog lamp holders (1) from the detents (arrows).
- Loosen the expanding rivet (2).
- Detach wiring harness (1).
- Detach the hose for the headlight cleaning system (2).
- Loosen screw (3).
- Remove control unit (4).
- Remove the fog lamps (5) upwards.
