37 11 Control And Suspension Elements, Front
>>
37 11 510 Removing and installing/replacing front active anti-roll bar (740i xDrive 2017-2022, 740e xDrive PHEV 2017-2019, 745e xDrive PHEV 2020-2022, 750i xDrive 2016-2022, M760i xDrive 2017-2022)
>>
Remove the active stabilizer in front
Remove the active stabilizer in front

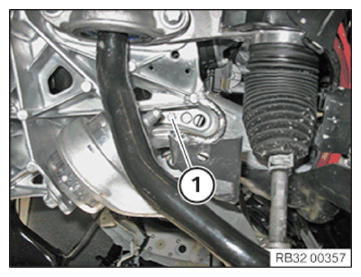

Release the screw
(1)
the right of the front axle support.
Courtesy of BMW OF NORTH AMERICA, INC.
Disconnect plug connections
(1)
and
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Set the connector with the holder aside.

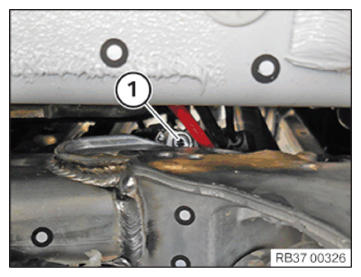

Loosen screw
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.

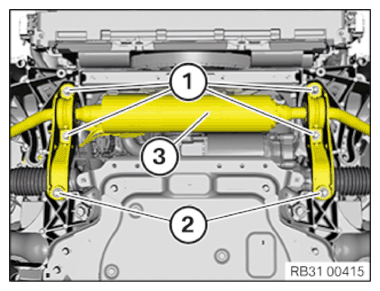

Loosen screws
(1)
and
(2)
.
Remove active stabilizer
(3)
.
Courtesy of BMW OF NORTH AMERICA, INC.
