Home >> BMW >> 2021 >> 740i >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle -- Repair (1 Of 2) (G12) >> 31 10 Front Axle Mounting >> 31 10 001 Completely removing and installing front axle with engine and transmission (750i 2016-2019) >> Remove the holder for the top auxiliary heater

Remove the holder for the top auxiliary heater

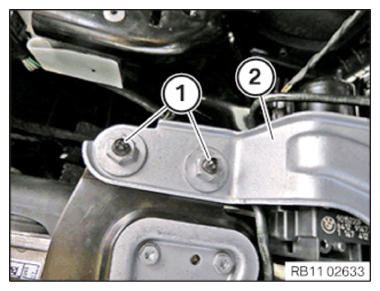

Loosen nuts (1) .
Remove the holder (2) .

G15134396

Courtesy of BMW OF NORTH AMERICA, INC.
