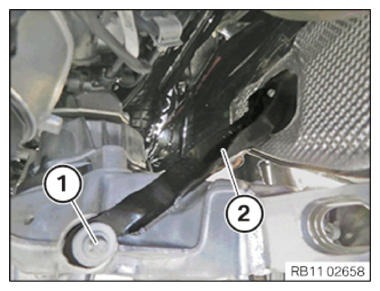

Remove reinforcement brace on right

• Loosen screws (1)  .
• Remove the reinforcement strut (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to IF INSTALLED: DISCONNECTING THE PLUG CONNECTIONS OF THE ACTIVE STABILIZER .
• Refer to COMPLETELY INSTALLING THE PROP SHAFT (PLUG-IN-REAR FLEXIBLE DISC) .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to CONNECTING BATTERY GROUND LEAD (ENGINE COMPARTMENT) .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to CONNECTING BATTERY GROUND LEAD .
• Refer to INSTALLING THE REINFORCEMENT STRUT ON THE ENGINE MOUNTING ON THE LEFT AND RIGHT .
• Refer to INSTALLING FAN COWL .
• Refer to EVACUATING THE AIR CONDITIONING .
• Refer to FILLING THE AIR CONDITIONING .
• Refer to FILLING THE COOLING SYSTEM WITH THE VACUUM FILLING UNIT .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE REINFORCEMENT STRUT ON THE ENGINE MOUNTING ON THE LEFT AND RIGHT .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
