Front Axle -- Repair (1 Of 2) (G12)
>>
31 10 Front Axle Mounting
>>
31 10 001 Completely removing and installing front axle with engine and transmission (750i 2016-2019)
>>
Releasing refrigerant lines
Releasing refrigerant lines

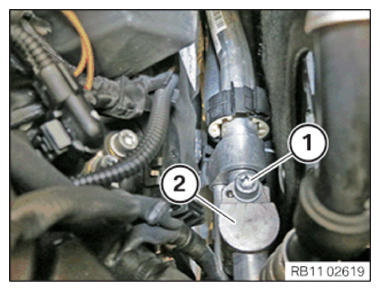

Unscrew the bolt
(1)
of the intake pipe
(2)
on the refrigerant line and detach.
Courtesy of BMW OF NORTH AMERICA, INC.

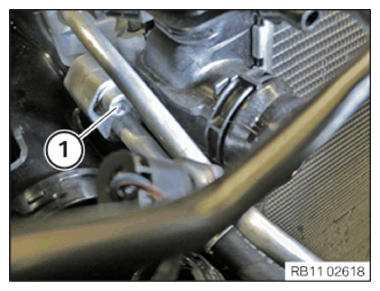

Unscrew the bolt for the
(1)
refrigerant line at the air conditioning condenser and detach it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
