Loosening the screw connection at the spring strut holder towards the bottom right wishbone

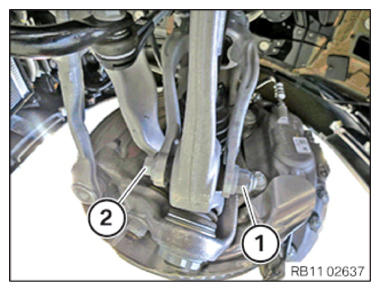

Unfasten nut (1) .
Remove the wishbone screw (2) .

G15134423

Courtesy of BMW OF NORTH AMERICA, INC.
