Front Axle -- Repair (1 Of 2) (G12)
>>
31 10 Front Axle Mounting
>>
31 10 001 Completely removing and installing front axle with engine and transmission (750i 2016-2019)
>>
Loosening the drive shafts from the front axle differential
Loosening the drive shafts from the front axle differential
It is exclusively necessary to loosen the front drive shaft if the engine is subsequently removed.

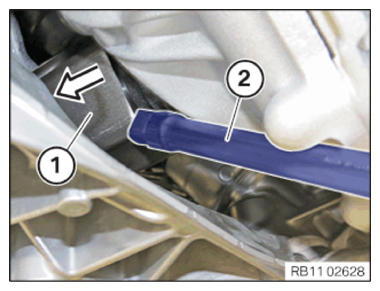

Drive out both drive shafts
(1)
using a suitable drift
(2)
in the direction of the arrow.
