Front Axle -- Repair (1 Of 2) (G12)
>>
31 10 Front Axle Mounting
>>
31 10 001 Completely removing and installing front axle with engine and transmission (750i 2016-2019)
>>
Loosening the battery cables
Loosening the battery cables

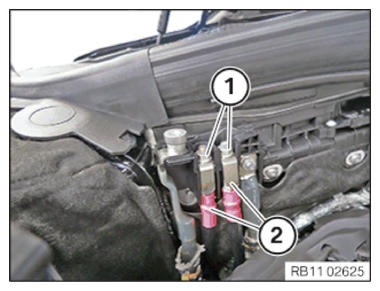

Release nuts 1 at the auxiliary terminal for jump starting.
Remove positive battery cables 2 from the auxiliary terminal for jump starting.
Courtesy of BMW OF NORTH AMERICA, INC.
