Front Axle -- Repair (1 Of 2) (G12)
>>
31 10 Front Axle Mounting
>>
31 10 001 Completely removing and installing front axle with engine and transmission (750i 2016-2019)
>>
Loosening the automatic transmission oil lines
Loosening the automatic transmission oil lines

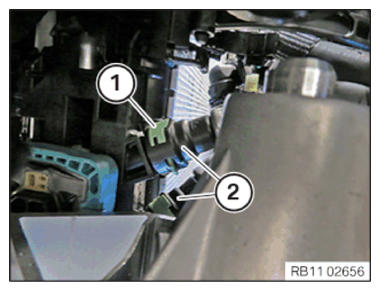

Unlock the lock
(1)
on the transmission oil line for the automatic transmission oil cooler.
Detach the transmission oil line
(2)
.
