Front Axle -- Repair (1 Of 2) (G12)
>>
31 10 Front Axle Mounting
>>
31 10 001 Completely removing and installing front axle with engine and transmission (750i 2016-2019)
>>
Loosen the holder for the auxiliary heater top
Loosen the holder for the auxiliary heater top

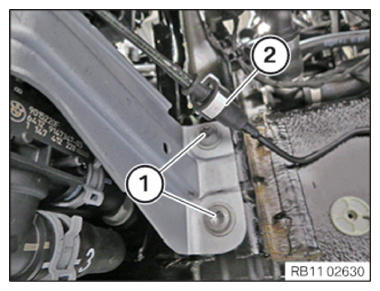

Loosen screws
(1)
.
Unlock and disconnect the fuel line
(2)
.
