31 10 Front Axle Mounting
>>
31 10 001 Completely removing and installing front axle with engine and transmission (750i 2016-2019)
>>
Disconnecting the plug connection of the stationary heating at the bottom
Disconnecting the plug connection of the stationary heating at the bottom

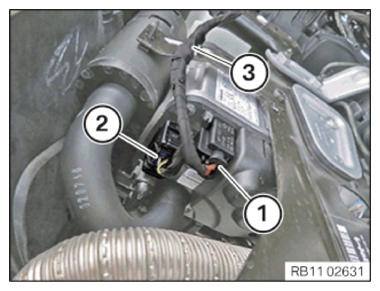

Unlock and disconnect the plug connections
(1)
and
(2)
on the control unit of the stationary heating.
Loosen the mounting
(3)
on the wiring harness of the stationary heating.
