Disconnecting the plug connection at the active rollover bar

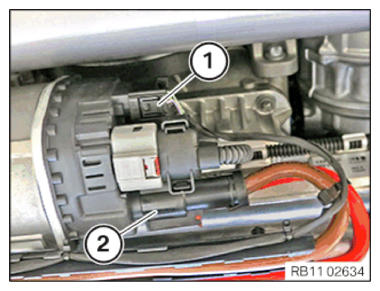

Unlock and disconnect the plug connections (1) and (2) .

G15134418

Courtesy of BMW OF NORTH AMERICA, INC.
