Check/add front differential oil

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly .
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Materials harmful to health .
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

Preliminary work

Refer to REMOVING THE FRONT LEFT WHEEL .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE RIGHT .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .

NOTE: RISK OF DAMAGE
Damage to the front differential .
Failure to comply with the oil specifications can result in serious damage to the front differential .

Use only the approved front differential oil.

NOTE: TECHNICAL INFORMATION
Filling to the lower edge of the oil filler opening means that the front differential is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front differential.
After having drained the front differential oil, repair the front differential or upon initial filling of a new replacement front differential, the transmission must be filled with 600 ml of oil.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Place oil collecting apparatus underneath.
Release the oil filler plug (1) .
Drain and dispose of front differential oil.
Replace (1) screw plug.

Parts: Plug

Tighten the oil filler plug (1) .

TIGHTENING TORQUE SPECIFICATIONS

Screw plug to front differential
M22 Replace screw plug with O-ring.	Tightening torque	60 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the oil filler plug (1) with the standard tool (2) .

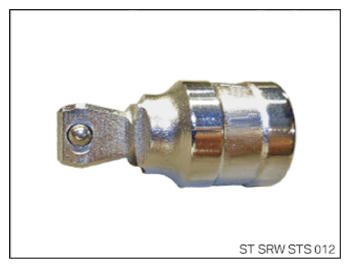

Standard tool: Pivoting extension 1/2 inch

Swivel extension 1/2 inch

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel extension 1/2 inch

NOTE: TECHNICAL INFORMATION
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.

Use special tool 2 460 340 for topping up.
To top up a defined (measured) oil quantity, first fill hose (1) with oil. To do this, connect adapter (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Supplementing the oil level with the oil spray

The training video schematically shows the method for changing the oil in the rear differential using the oil sprayer special tool.

The training video is not a replacement for the repair instructions.

The training video is not subject to the update service.

We can assume no liability for printing errors or inaccuracies in this service information and reserve the right to introduce technical modifications at any time.

Refer to:

multimedia:A supplement to the article is available.

Follow repair instructions!

Fill the front differential oil with the special tool 2 460 340 into the front differential.

TECHNICAL DATA SPECIFICATION

Front differential oil
	Front differential filling capacity	600 ml

Courtesy of BMW OF NORTH AMERICA, INC.

Replace (1) screw plug.
Parts: Plug
Tighten the oil filler plug (1) with the standard tool (2) .

Standard tool: Pivoting extension 1/2 inch

Swivel extension 1/2 inch

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel extension 1/2 inch

TIGHTENING TORQUE SPECIFICATIONS

Screw plug to front differential
M22 Replace screw plug with O-ring.	Tightening torque	60 Nm

Follow-up work

Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT .
Refer to ATTACHING THE FRONT LEFT WHEEL .
