Secure the wiring harness on the cylinder head cover on the right
NOTE:
RISK OF DAMAGE
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
- Screw all screw points of the cable ducts on again. Some of the screw points are also grounding points.

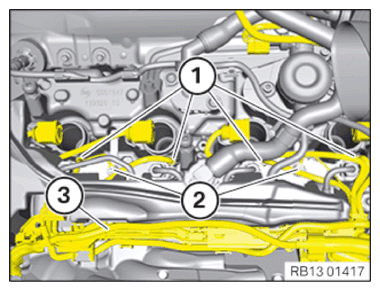

- Route the wiring harness (3) on the cylinder head cover on the right and the sound insulation.
- Connect the connectors (1) to the injectors. They must lock audibly.
- Connect ground cable to ground pin and tighten the nuts (2).
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable on cylinder head cover/ground pin | ||
|---|---|---|
| Nut M5 | tightening torque | 4.6 Nm |
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

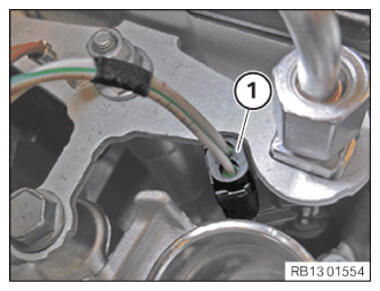

- Check all connectors (1) on the injectors again to ensure they are correctly fitted.
- Check that all connectors are plugged in correctly.

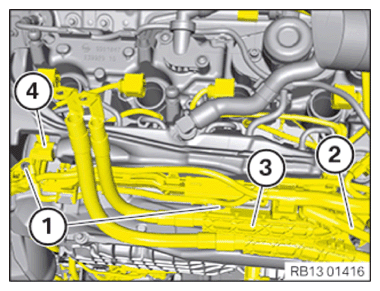

- Connect the connector (4) to the rail pressure sensor and lock it audibly.
- Route the positive battery cables together with the cable clips (3) and secure using the ground pin.
- Tighten the ground pin.
TIGHTENING TORQUE SPECIFICATIONS
| Battery ground lead to cylinder head cover | ||
|---|---|---|
| Earth pin | Tightening torque | 10 Nm |
- Connect the ground cable to the ground pin and tighten the nut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable on cylinder head cover/ground pin | ||
|---|---|---|
| Nut M5 | tightening torque | 4.6 Nm |
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Cable duct to cylinder head cover/cylinder head | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |

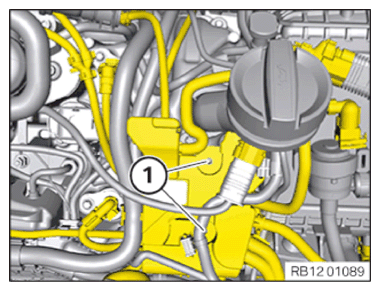

- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Cable duct to cylinder head cover/cylinder head | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |

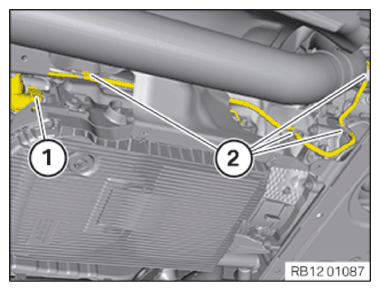

- Route the cables and secure to the clamps (2).
- Connect and lock the connector (1) to the transmission.

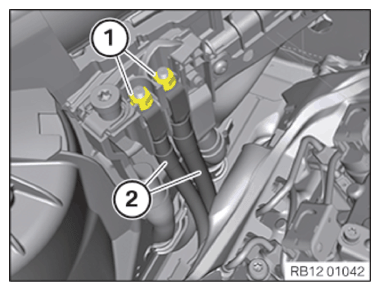

- Connect the positive battery cables (2) to the auxiliary terminal for jump starting.
- Tighten nuts (1).
TIGHTENING TORQUE SPECIFICATIONS
| Battery positive lead to battery positive terminal | ||
|---|---|---|
| M8 | Tightening torque | 15 Nm |

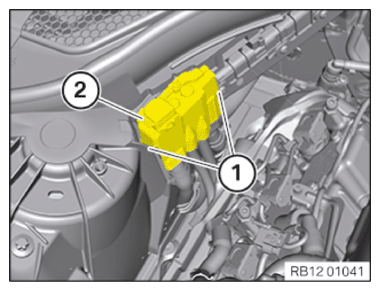

- Mount the cover (2) on the auxiliary terminal for jump starting.
- Lock the locks (1).
