Removing the pressure line between the evaporator and the air conditioning condenser

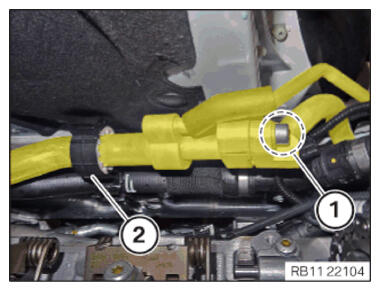

• Loosen screw (1)  .
• Remove the bracket (2)  of the pressure line.

  Courtesy of BMW OF NORTH AMERICA, INC.

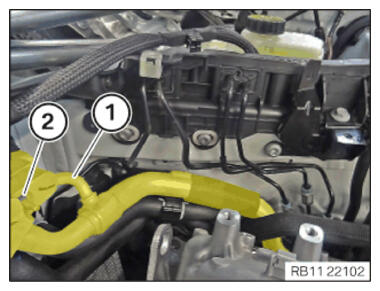

• Release the nut (2)  on the pressure line (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

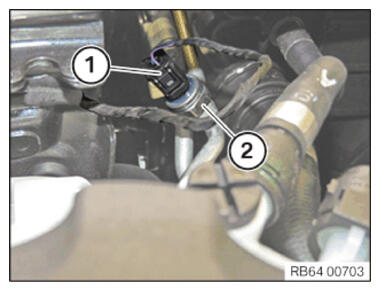

• Unlock and disconnect the plug connection (1)  on the pressure switch (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

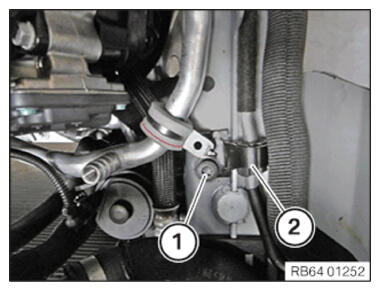

• Loosen screw (1)  .
• Open the holder (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

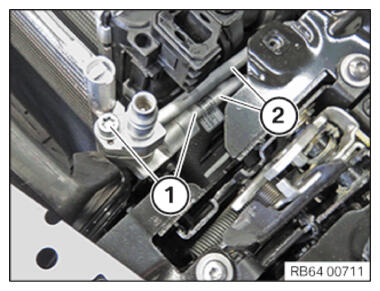

• Loosen screws (1)  .
• Feed out refrigerant lines (2)  and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
