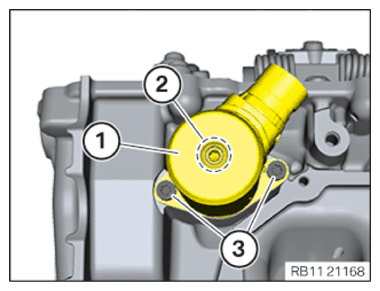

Removing the left Valvetronic servomotor (cylinder head removed)

• Loosen screws (3)  .
• Turn Valvetronic servomotor eccentric shaft (2)  counterclockwise to loosen and remove the Valvetronic servomotor (1)  .
