Removing the heat shield of the high-pressure pump cylinder head cover on the left, cylinders 5 to 8
Removing the heat shield of the high-pressure pump cylinder head cover on the left, cylinders 5 to 8

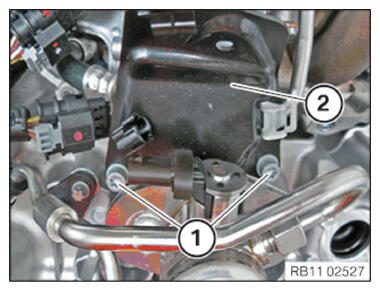

Loosen screws
(1)
.
Remove the heat shield
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
