Removing the VANOS central valves 5 to 8 intake

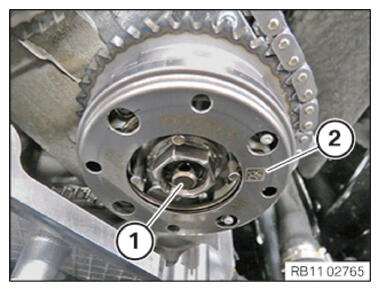

Unscrew the central bolt (1) of the intake adjuster (2) .
Remove the intake adjuster (2) .

G15188392
