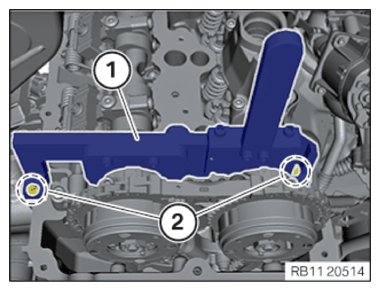

Removing special tool for fixing camshafts on bank 1

Loosen screws (2) .
Remove the special tool 2 249 117 (1) .

G15188250

Courtesy of BMW OF NORTH AMERICA, INC.
