Removing ignition coil of cylinder bank 2

Precondition

Ignition is switched off.

NOTE: RISK OF DAMAGE
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.

When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).

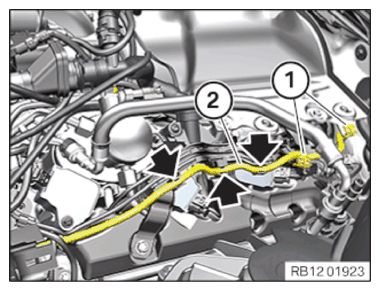

Loosen clamps (1).
Thread cable (2) out of holders (arrows) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

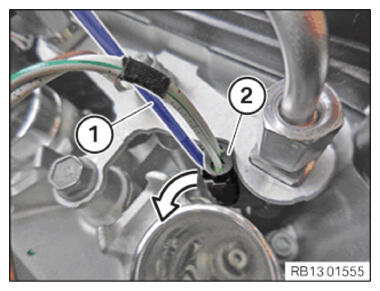

Unlock and disconnect the connectors (2) from the injectors with a small slotted screwdriver (1).
Unlock the lock using a small slotted screwdriver (1) in the arrow direction. Disconnect the connector (2) on the connector housing from the injector.

Courtesy of BMW OF NORTH AMERICA, INC.

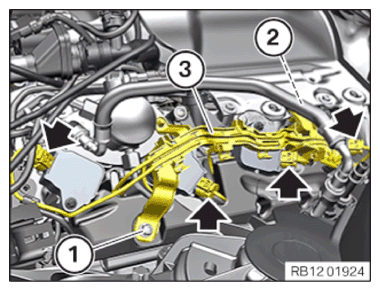

Unlock plug connection (arrow) and disconnect.
Loosen nut (1).
Loosen screw (2).
Remove the cable clip (3) and put to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

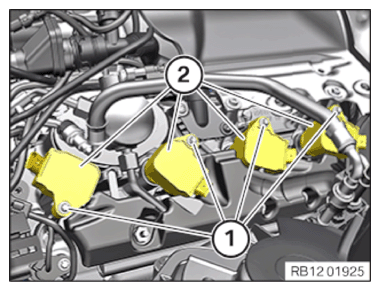

Loosen screws (1).
Slowly pull the ignition coils (2) up and take them out without jerking them.
Pulling out the ignition coil with jerks may cause silicone hose to tear.

Courtesy of BMW OF NORTH AMERICA, INC.
