Remove the sliding block of cylinder bank 2

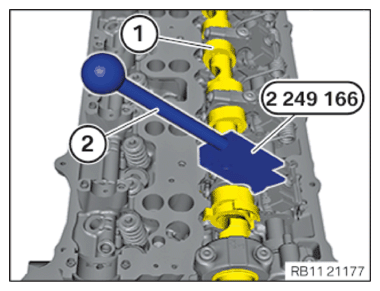

• Position the special tool 2 249 166  on the intake camshaft (1)  in the area of the sliding block (2)  to be disassembled.

  Courtesy of BMW OF NORTH AMERICA, INC.

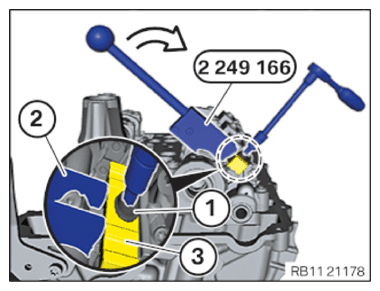

• Preload the sliding block (3) with the special tool 2 249 166 (2) in direction of arrow.
• Loosen screw (1)  .
• Remove the gate (3)  and place it arranged in order into 0 495 105 (11 4 480) .
• Repeat the step for all the gates.

Courtesy of BMW OF NORTH AMERICA, INC.
