Remove the heat shield of the high-pressure pump of the cylinder head cover on the right, cylinders 1 to 4

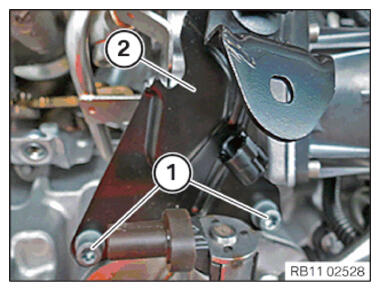

Loosen screws (1) .
Remove the heat shield (2) .

G15188388

Courtesy of BMW OF NORTH AMERICA, INC.
