Mount the wiring harness on the cylinder head cover on the left
NOTE:
RISK OF DAMAGE
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
- Screw all screw points of the cable ducts on again. Some of the screw points are also grounding points.
- Install wiring harness at left cylinder head cover and on sound insulation.

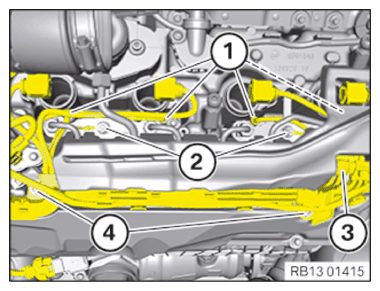

- Connect the connectors (1) to the injectors. They must lock audibly.
- Connect ground cable to ground pin and tighten the nuts (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable on cylinder head cover/ground pin | ||
|---|---|---|
| Nut M5 | tightening torque | 4.6 Nm |
- Connect the connector (3) to the rail pressure sensor and lock it audibly.
- Tighten down screws (4) .
TIGHTENING TORQUE SPECIFICATIONS
| Cable duct to cylinder head cover/cylinder head | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

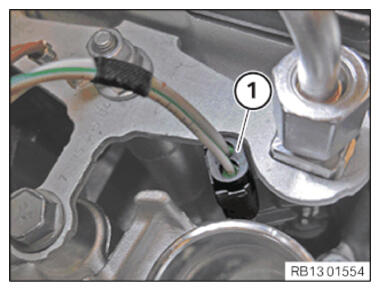

- Check all connectors (1) on the injectors again to ensure they are correctly fitted.
- Check if all connectors (1)
have been engaged.

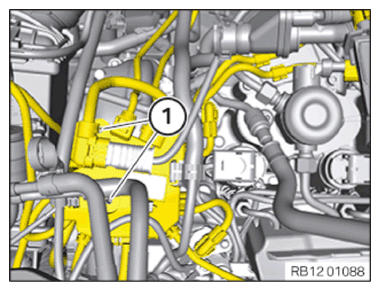

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Cable duct to cylinder head cover/cylinder head | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |
