Installing the left-hand high pressure line between the high pressure pump and the rail
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

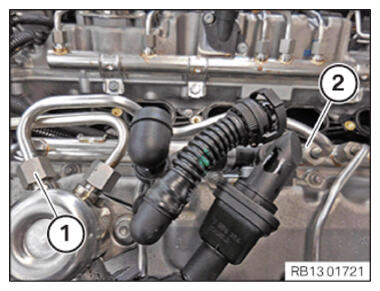

- Install the high pressure line.
- Tighten the nuts (1) and (2) only hand-tight .
- Tighten the nut (1) on the high pressure pump first.
TIGHTENING TORQUE SPECIFICATIONS
| High pressure line to high pressure pump/rail | ||
|---|---|---|
| M14 | Tightening torque | 30 Nm |
- Then tighten the nut (2) on the rail.
TIGHTENING TORQUE SPECIFICATIONS
| High pressure line to high pressure pump/rail | ||
|---|---|---|
| M14 | Tightening torque | 30 Nm |
