Installing the front-end strut (US version)

NOTE: Description is for left component only. Procedure on the right side is identical.

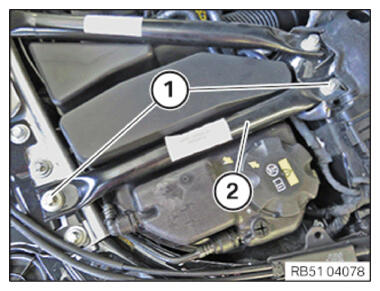

• Install the front-end strut (2).

NOTE: RISK OF DAMAGE
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.

• Only use a standard tool (e.g. reversible ratchet) to release/tighten the screws.

Courtesy of BMW OF NORTH AMERICA, INC.

• Clean the thread at shock tower.
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Front-end strut/strut brace
Screw Replace screw.	Tightening torque	56 Nm
	Angle of rotation	90°

• Repair the damaged thread on the shock tower with a Helicoil insert.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Helicoil thread insert

M10x30 mm 07129909659

NOTE: Only perform the operation on the right side.

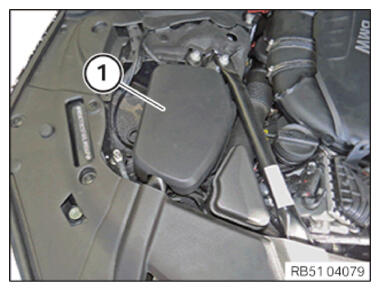

• Attach the cover (1) and snap it into the locks.
