Installing right intake plenum (cylinder head removed)

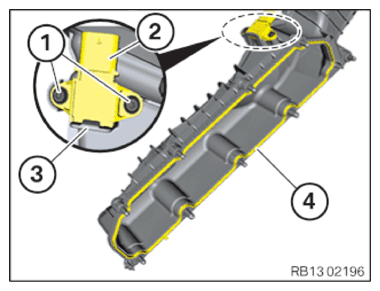

- Replace the seal (4)
.
Parts: Seal
- Only during replacement of the intake plenum:
Loosen screws (1) .
Unlock pressure sensor (2) on the retaining tab (3) .
Remove pressure sensor (2) .
Position pressure sensor (2) .
Retaining tab (3) must audibly lock in.
Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Pressure sensor | ||
|---|---|---|
| screw | Tightening torque | 3 Nm |

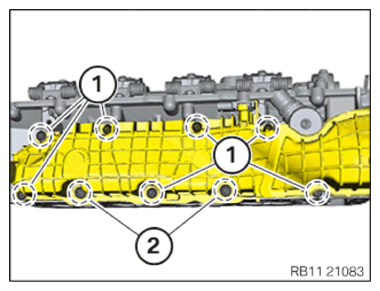

- Position the left intake plenum.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum | ||
|---|---|---|
| M6 screw | Tightening torque | 10 Nm |
- Tighten down screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum | ||
|---|---|---|
| M8 screw | Tightening torque | 21.4 Nm |
