Installing air conditioning compressor

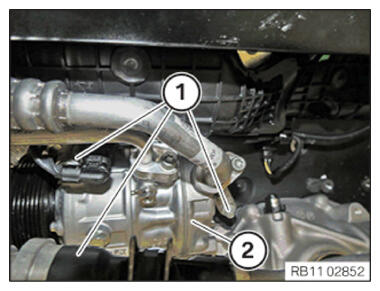

Position air conditioning compressor (2) and fasten screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Standard screw connection M8
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
