Install sliding blocks of bank 1
- Position the special tool 2 249 166 on the intake camshaft (1) in the sliding block (2) area.
- Remove the oil and dirt from the sliding block (3) .

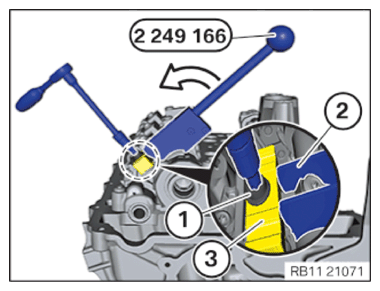

- Position the sliding block (3) and abut with the screw (1) .
- Preload the sliding block (3) with the special tool 2 249 166 (2) in direction of arrow.
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Sliding block on cylinder head | ||
|---|---|---|
| Screw M7x35 10.9 | Tightening torque | 20.5 Nm |
- Relieve the special tool 2 249 166 (1) and feed it out of the camshaft (2) and place aside.
- Repeat the step for all the gates.
