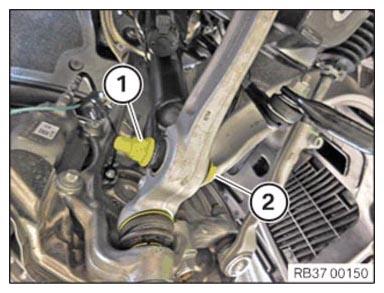

Secure the spring strut to the bottom wishbone

• Position the spring strut on the bottom of the wishbone.
• Replace screw (2)  and nut (1)  .

  Parts:  Bolt, nut

• Insert the screw (2)  .
• Tighten nut (1)  .
