Removing the left front bottom wheel arch cover

NOTE: Description is for left component only. Procedure on the right side is identical.

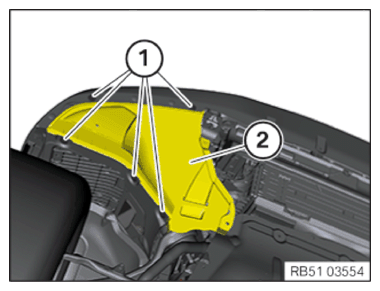

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Loosen screws (1)  .
• Guide the wheel arch cover (2)  out.

Courtesy of BMW OF NORTH AMERICA, INC.
