Removing the anti-roll bar

Loosening the anti-roll bar link on the left and right from the anti-roll bar

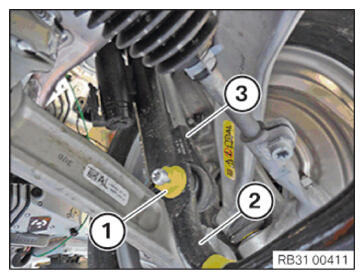

Loosening the anti-roll bar link from the anti-roll bar

• Loosen nut (1)  .
  NOTE: Counter-hold at the Torx socket.
• Loosen the anti-roll bar link (3)  from the anti-roll bar (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

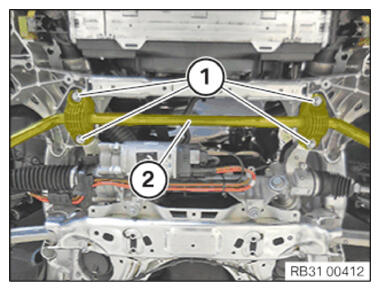

If installed: Removing the anti-roll bar

• Loosen screws (1)  .
• Remove anti-roll bar (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

If installed: Remove the active stabilizer in front

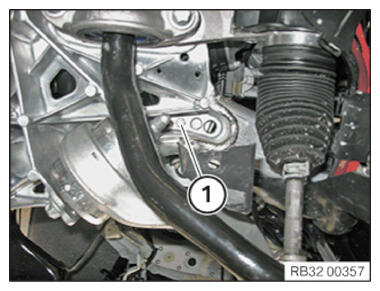

• Release the screw (1)  the right of the front axle support.

  Courtesy of BMW OF NORTH AMERICA, INC.

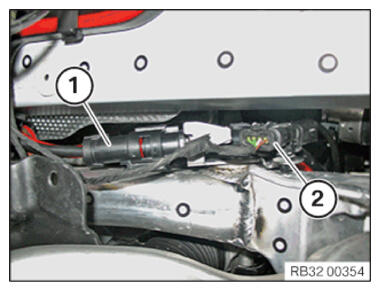

• Disconnect plug connection (1)  and (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Set the connector with the holder aside.
• Loosen screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

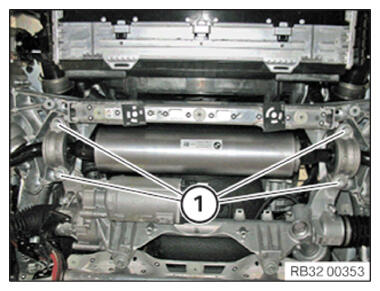

• Loosen screws (1)  .
• Remove the active stabilizer.

Courtesy of BMW OF NORTH AMERICA, INC.
